51 11 180 Removing and installing/replacing ornamental grille for bumper panel (center)

Necessary preliminary tasks:

• Remove LOWER SECTION OF BUMPER TRIM AT FRONT

Release ornamental grille (1) from latch mechanisms (2) toward the rear.

If necessary, detach hose for headlight cleaning system from ornamental grille (1).

Feed out and remove ornamental grille (1) from bumper panel (3).

Installation note:

Latch mechanisms (2) must not be damaged or missing.

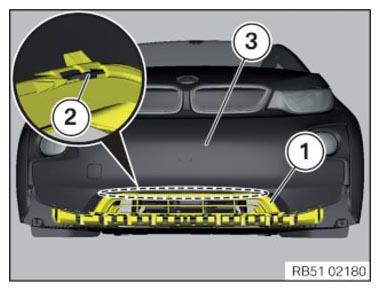

Fig 1: Identifying Ornamental Grille, Bumper Panel And Latch Mechanisms

Courtesy of BMW OF NORTH AMERICA, INC.
