51 11 164 Removing and installing/replacing left or right bumper panel trim

Special tools required:

Unclip latch mechanisms (1) for trim (2) using special tool 2 298 505 .

NOTE: Begin by releasing the latch mechanisms (1) in area (A).

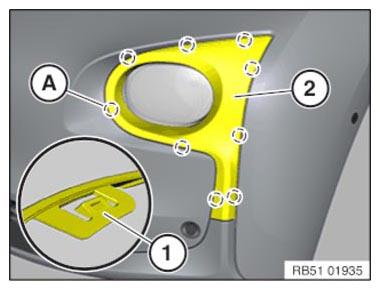

Fig 1: Identifying Latch Mechanisms And Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Latch mechanisms must not be damaged or missing.

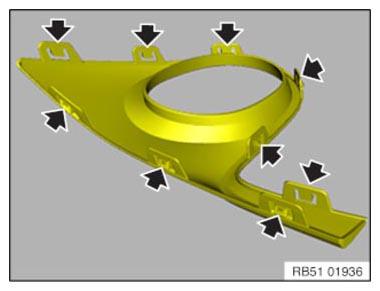

Fig 2: Checking Latch Mechanisms For Damaged Or Missing

Courtesy of BMW OF NORTH AMERICA, INC.
