51 71 447 Removing and installing or replacing trim panel for cover on left or right side member

Special tools required:

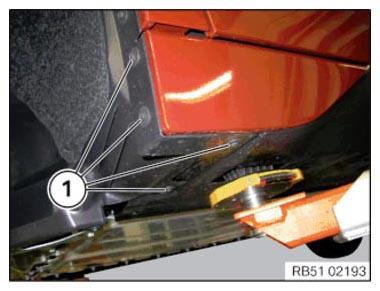

Release screws (1).

Fig 1: Removing Side Member Screws

Courtesy of BMW OF NORTH AMERICA, INC.

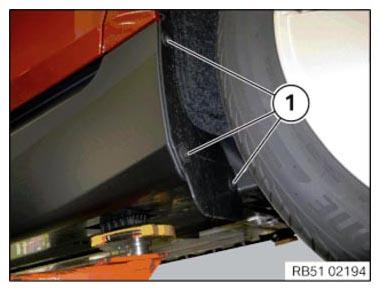

Release screws (1).

Fig 2: Identifying Cover Screws

Courtesy of BMW OF NORTH AMERICA, INC.

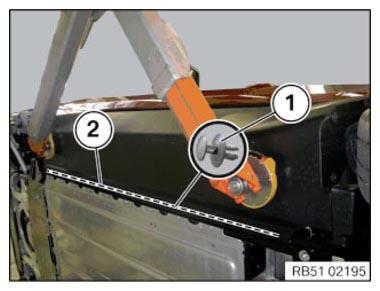

Release all clips (1) in vicinity of dashed line (2).

Installation note:

Replace faulty clips (1).

Fig 3: Identifying Dashed Line And Clips

Courtesy of BMW OF NORTH AMERICA, INC.

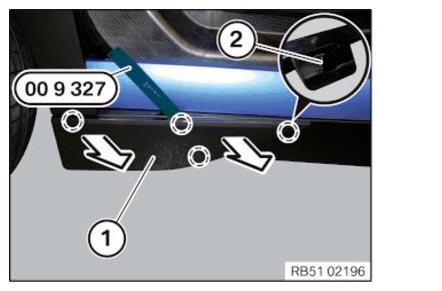

Lever out trim (1) with special tool 00 9 327 at latch mechanisms (2) and remove.

Installation note:

Latch mechanisms (2) must not be damaged.

Fig 4: Removing Trim With Special Tool (00 9 327)

Courtesy of BMW OF NORTH AMERICA, INC.

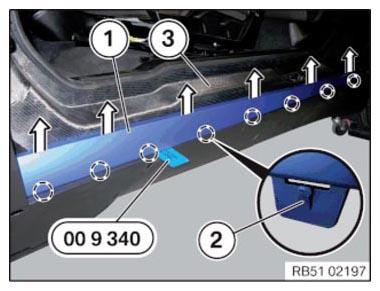

Lever out trim (1) with special tool 00 9 340 upward out of latch mechanisms (2) and remove.

Installation note:

Latch mechanisms (2) must not be damaged.

Make sure trim (1) is correctly seated on side sill (3).

Fig 5: Removing Trim From Latch Mechanisms With Special Tool (00 9 340)

Courtesy of BMW OF NORTH AMERICA, INC.

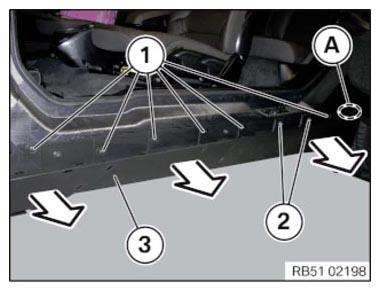

Release screws (1).

Tightening torque 51 71 3AZ .

Unscrew nuts (2).

Tightening torque 51 71 2AZ .

Disengage cover (3) in area (A) and remove in direction of arrow.

Fig 6: Disengaging Cover

Courtesy of BMW OF NORTH AMERICA, INC.
