51 71 360 Removing and installing/replacing seal for tailgate
Follow the notes on fitting SEALS .
Necessary preliminary tasks:
- Release REAR GAS PRESSURE SPRINGS on tailgate.

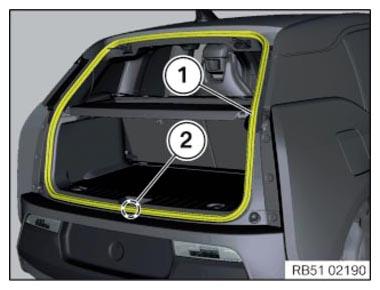

Detach seal (1) from luggage compartment lid cutout.
Installation note:
Start installation at top middle.
The contact point (2) of the sealing (1) must be at the bottom center.
Make sure seal (1) is correctly seated on body and all trim panel parts.
