41 11 650 Removing and installing/replacing the vertical strut (support for bumper panel removed)

Read contents of BODY, GENERAL .

NOTE: Observe (REPAIR STAGE 1) procedure!

Removal of the vertical strut

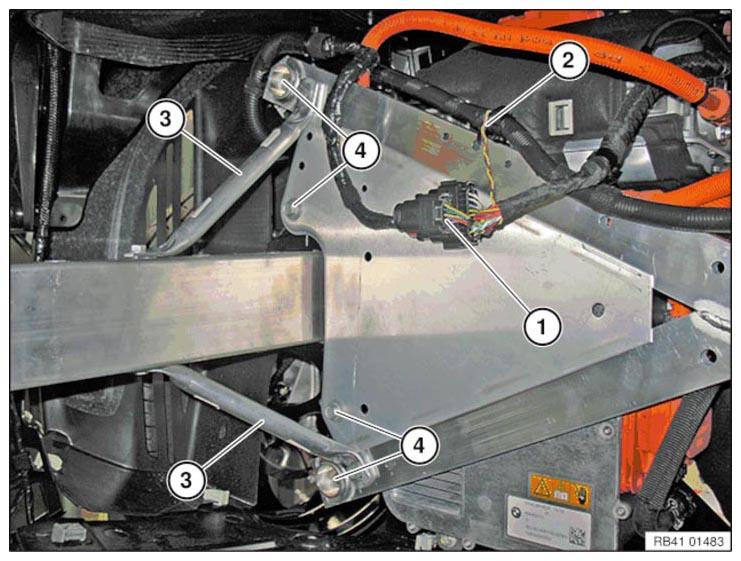

Fig 1: Identifying Cable Strap, Tension Strut, Connector And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release connector (1) by rotating.

Cut open cable strap (2).

Remove tension strut at top and bottom (3).

Release screws (4).

Tightening torque 41 11 4AZ .

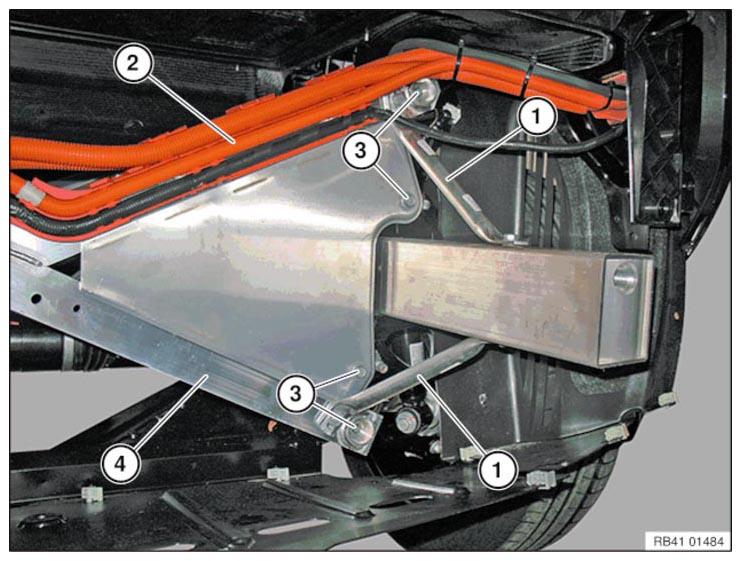

Fig 2: Identifying Tension Strut, High-Voltage Cables And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Remove tension strut at top and bottom (1).

Unclip high-voltage cables (2) (4x).

Loosen screws (3).

Tightening torque 41 11 4AZ .

Remove vertical strut (4).

Installation of the vertical strut

The installation takes place in reverse order.

Tighten screws with tightening torque.
