51 32 200 Removing and installing (replacing) front fixed door window glass on left (right)

Necessary preliminary tasks:

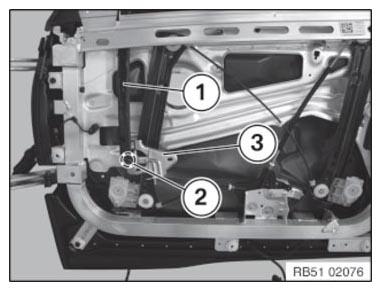

Slacken nut (1).

Tightening torque 51 33 4AZ .

Installation note:

Replace nut (1).

Fig 1: Identifying Door Window Glass Nut

Courtesy of BMW OF NORTH AMERICA, INC.

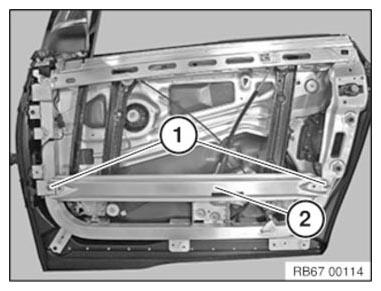

Release screws (1).

Remove strut (2).

Fig 2: Identifying Door Window Strut And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

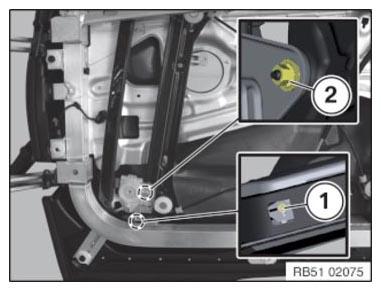

Release nut (1) from below.

Release nut (2) from rear.

Tightening torque 51 33 4AZ .

Installation note:

Replace nuts (1) and (2).

Fig 3: Identifying Door Window Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Pull guide (1) with side window sightly upwards.

Release nut (2) from rear.

Tightening torque 51 33 4AZ .

Take off holder (3).

Pull door window glass with guide (1) upwards.

Installation note:

Replace nut (2).

Fig 4: Identifying Door Window Glass Guide, Holder And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:
