51 21 180 Removing and installing/replacing cover on outside door handle

Insert suitable screwdriver (1) in opening on cover (2).

Unlock retaining lug (3) towards front and remove cover (2) in direction of arrow.

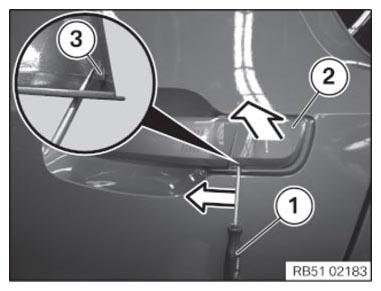

Fig 1: Removing Outside Door Handle Cover
G11146976Courtesy of BMW OF NORTH AMERICA, INC.
