51 47 490 Removing and installing/replacing front underbody protection

Release screws.

Remove underbody protection (1).

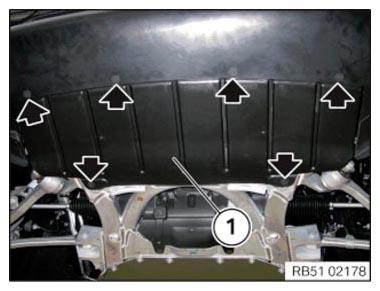

Fig 1: Identifying Underbody Protection And Screws
G11145241Courtesy of BMW OF NORTH AMERICA, INC.
