51 14 010 Removing and installing/replacing rear BMW badge

Special tools required:

• 00 9 322

IMPORTANT: The notes on COMPONENT BONDING  with double-sided adhesive tape serve as the basis for this repair instruction and must be observed without fail. When removing BMW badge (1), do not damage fixture (2).

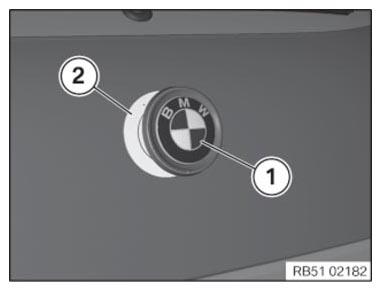

Fig 1: Identifying BMW Badge And Fixture

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully heat BMW badge (1) with hot air blower and lever out with special tool 00 9 322 .

Fig 2: Removing BMW Badge Using Special Tool (00 9 322)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Pull liner* off adhesive tape (1).

Position plate over guides (2 and 3) and press down firmly.

* Liner is the protective film on a new plate.

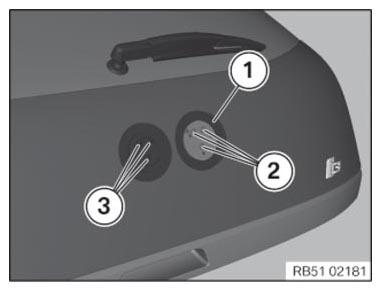

Fig 3: Identifying Guides And Adhesive Tape

Courtesy of BMW OF NORTH AMERICA, INC.
