51 14 000 Removing and installing/replacing front BMW badge

Release screw (1).

Remove plate from engine compartment lid.

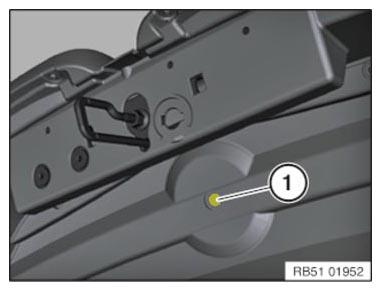

Fig 1: Identifying Engine Compartment Lid Plate Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Guide pin (1) must be correctly seated in corresponding opening (2).

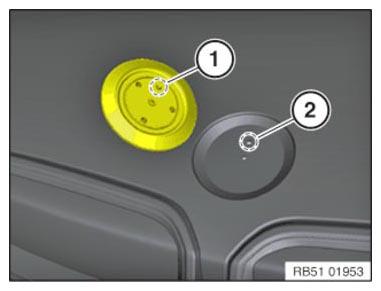

Fig 2: Identifying Corresponding Opening And Pin

Courtesy of BMW OF NORTH AMERICA, INC.
