13 71... Removing intake port (N55)

Release intake port (1) at front of air duct (2).

Loosen clamps (3). Release and remove intake port from air filter housing.

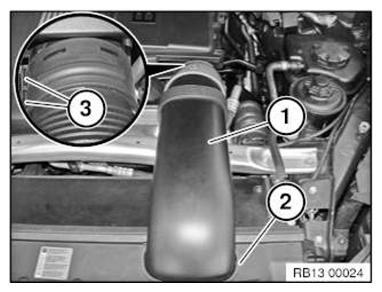

Fig 1: Identifying Intake Port, Air Duct And Clamps

Courtesy of BMW OF NORTH AMERICA, INC.
