Removing and installing/replacing left luggage compartment wheel arch panel (with 3rd row of seats) (X5 M)

Necessary preliminary tasks:

• Remove STORAGE COMPARTMENT IN LUGGAGE COMPARTMENT .
• Remove TRIM PANEL FOR BOTTOM OF LUGGAGE COMPARTMENT .
• Remove COVER ON C-PILLAR AT BOTTOM .

Version with storage compartment package:

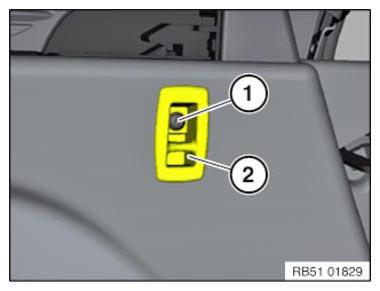

Unscrew bolt (1) on lashing eye (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Version without lashing rail:

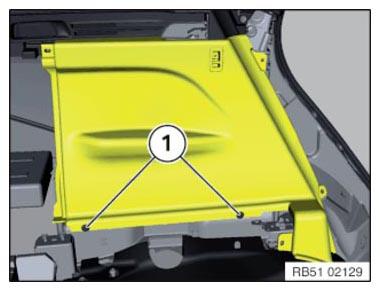

Release clamps (1).

Courtesy of BMW OF NORTH AMERICA, INC.

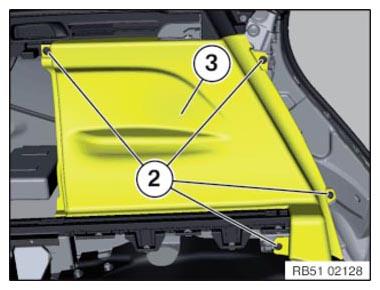

Release clamps (2).

Depending on the version, unlock and disconnect associated plug connections.

Feed out luggage compartment wheel arch trim (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Depending on the version, remount power socket (1).

Version with storage compartment package:

Remount multifunction hook (2).

Remount tensioning strap (3).

Courtesy of BMW OF NORTH AMERICA, INC.
