Remove rear timing case cover

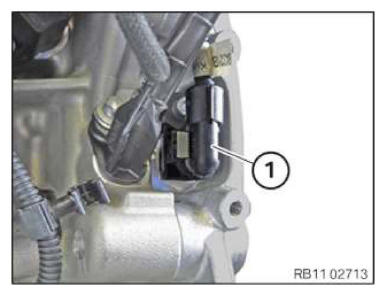

- Unlock the connector (1) and detach it off the crankshaft sensor.
 Courtesy of BMW OF NORTH AMERICA, INC.
|

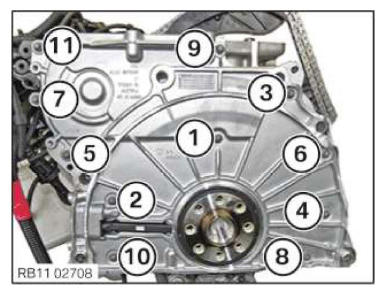

- Loosen screws in the order (11) to (1).
NOTE:
TECHNICAL INFORMATION
Increased force may be necessary during disassembly because the component is bonded with liquid sealing compound.
- Carefully loosen and remove the timing case cover.
Courtesy of BMW OF NORTH AMERICA, INC.
