Installing counter supports for the sun visor on left and right
NOTE:
Description is for left component only. Procedure on the right side is identical.

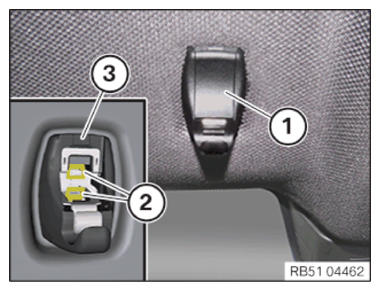

Install the counter support for the sun visor
- Insert the counter support (3) into the headlining.
- Make sure the clamps (2) are engaged correctly.
- Use cover (1).
 Courtesy of BMW OF NORTH AMERICA, INC.
|
