Possible MOST devices
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

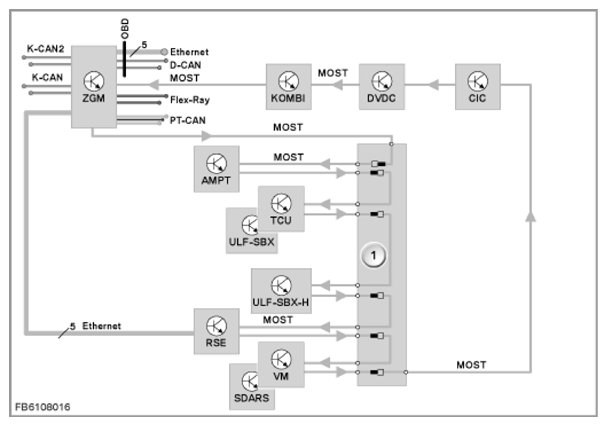

MOST devices that are always fitted:
- ZGM: Central gateway module
- Instrument panel: Instrument panel
- CIC: Car Information Computer
MOST devices that are fitted depending on optional extras:
- DVDC: DVD changer
- AMPT: Top HiFi amplifier
- TCU or ULF-SBX: Telematics control unit or interface box
- ULF-SBX-H: Interface box High
- RSE: Rear seat entertainment system
- VM or SDARS: Video module or satellite tuner
| Index | Explanation |
|---|---|
| 1 | Optic-fibre cable connector |
The arrow shows the direction of the light in the MOST ring.
NOTE:
MOST port has been eliminated.
As of F01, MOST port has been eliminated. The MOST devices are programmed via Ethernet.

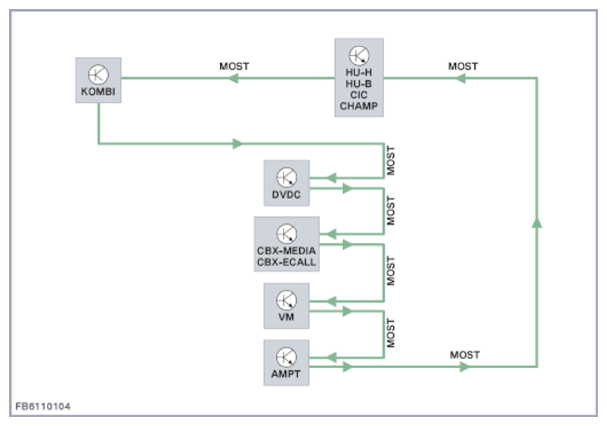

MOST devices that are always fitted:
- KOMBI: instrument cluster (high-spec version only, no MOST with basic version)
- HU-H, HU-B, CIC, CHAMP: Headunit
MOST devices that are fitted depending on optional extras:
- DVDC: DVD changer
- CBX-MEDIA and CBX-ECALL: Combox multimedia and Combox emergency call
- VM: Video module
- AMPT: Top HiFi amplifier
The arrow shows the direction of the light in the MOST ring.
NOTE:
programmed via Ethernet.
The MOST devices are programmed via Ethernet.
