Outside temperature sensor
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
The outside temperature sensor supplies the value for the ambient temperature to the instrument panel. The ambient temperature is shown on the liquid crystal display. The display resolution is 0.5°C (1°F). The value for ambient temperature is also made available to other control units via the K-CAN. The signal from the outside temperature sensor is digitalized in the instrument panel. A calculation model suppresses the effects of thermal radiation from the engine compartment on the signal. At higher driving speeds and lower engine temperatures the system selects lower damping action. The real outside temperature value can only be reliably expected starting at driving speed of about 80 km/h.

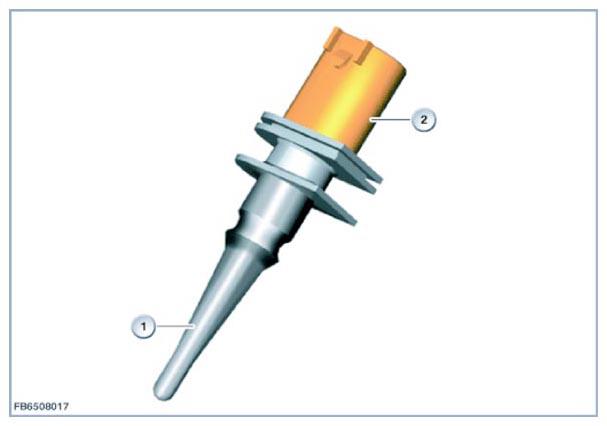

| Item | Explanation |
|---|---|
| 1 | Outside temperature sensor |
| 2 | two-pin plug connection |
