66 53 180 Removing and installing (replacing) control unit for reversing camera

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD PROTECTION) .

Remove FLAP IN LUGGAGE COMPARTMENT PANEL on left

Release screws.

Remove control unit bracket (1).

NOTE: Control unit for rear-view camera is located at the back of the bracket.

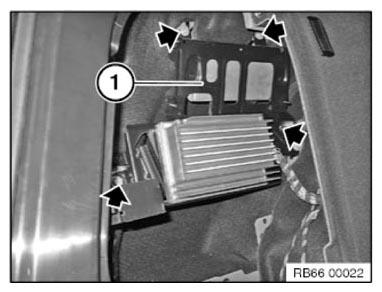

Fig 1: Locating Control Unit Bracket Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connections and disconnect.

Unscrew nuts (1).

Remove control unit for rear-view camera (3) from bracket (2).

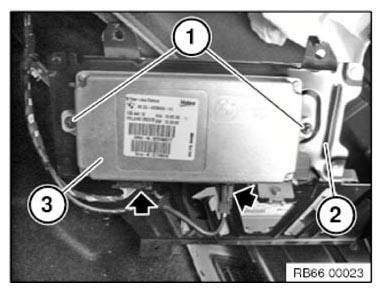

Fig 2: Identifying Control Unit For Rear-View Camera From Bracket, Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING AND ENCODING .
CALIBRATE REVERSING CAMERA
