72 11 101 Removing and installing/replacing rear center seat belt

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove REAR SEAT
PARTIALLY REMOVE LEFT BACKREST COVER

Release screw (1).

Tightening torque 72 11 21AZ .

Installation note:

Parts: Replace screw (1).

End fitting is coded against incorrect assembly.

Fig 1: Locating Rear Center Seat Belt Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken nut (1).

Tightening torque 72 11 20AZ .

Remove inertia reel mechanism (2) with seat belt anchor fitting.

Installation note:

Retractor mechanism is encoded against incorrect assembly.

Replace nut (1) and fit with Loctite.

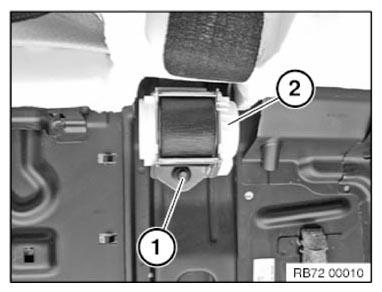

Fig 2: Identifying Inertia Reel Mechanism With Seat Belt Anchor Fitting

Courtesy of BMW OF NORTH AMERICA, INC.
