72 11 097 Removing and installing/replacing rear center lower strap
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary work:
- Remove REAR SEAT

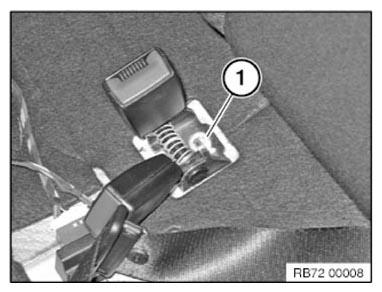

Release screw (1).
Tightening torque 72 11 22AZ .
Remove lower strap.
Installation note:
Lower belt fitting is coded against incorrect installation.
Replace screw (1).
