72 11 041 Removing and installing/replacing front left or right lower strap

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove FRONT SEAT

WARNING: Read and comply with SAFETY REGULATIONS for handling airbag modules and pyrotechnical belt tensioners.
Improper handling can lead to triggering of the pyrotechnical seat belt tensioner or side airbag, resulting in injuries.

Switch off the ignition!

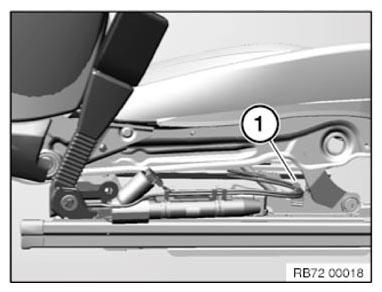

Cut open cable strap (1).

Unlock connector (2) in marked area and pull out of connector housing (3).

Installation note:

Replace cable straps (1).

Make sure connector (2) is correctly locked in connector housing (3).

Fig 1: Pulling Connector Out Of Connector Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect cable strap (1) at metal clamp.

Installation note:

Replace defective cable strap.

Fig 2: Identifying Cable Strap At Metal Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Installation note:

Replace screw (1).

Tightening torque 72 11 03AZ .

Remove seat belt tensioner.

Installation note:

Belt tensioner is coded against incorrect assembly.

Fig 3: Identifying Seat Belt Tensioner Screw

Courtesy of BMW OF NORTH AMERICA, INC.
