72 12 000 Removing and installing or replacing airbag module on front passenger side

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Read and comply with SAFETY INSTRUCTIONS for handling airbag modules and pyrotechnical belt tensioners.
Incorrect handling can activate airbag and cause injury.

Necessary preliminary tasks:

Disconnect NEGATIVE BATTERY CABLE
Remove GLOVE BOX

Release screws (1).

Remove dashboard holder (1).

Unlock PLUG CONNECTION (3) and disconnect.

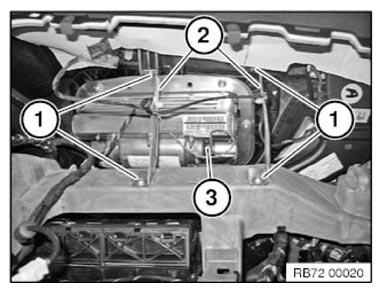

Fig 1: Identifying Dashboard Holder Plug Connection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Shown here with the dashboard removed for the sake of clarity.

Release screws.

Tightening torque 72 12 01AZ .

Remove airbag module from dashboard and feed out through instrument holder.

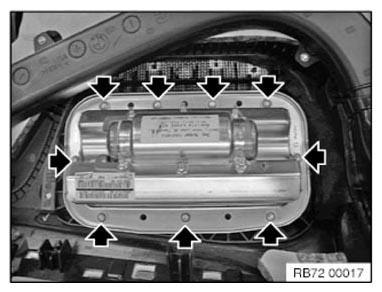

Fig 2: Locating Airbag Module From Dashboard Screws

Courtesy of BMW OF NORTH AMERICA, INC.
