41 14 502 Replacing Rear Left Outer Wheel Arch Section With Reinforcement (Rear Side Panel Removed)

Follow procedure for REPAIR STAGE 3 .

Read contents of BODY, GENERAL .

Spot-weld bonding is used on this vehicle. Observe specific procedure  . See 41 00... SPOT-WELD BONDING STEEL COMPONENTS  or 41 00... OPENING BONDED CONNECTIONS .

Use only approved SPOT-WELDING APPARATUS  for repairs.

Following new body parts are required (refer to OVERVIEW OF CONSUMABLES ):

• (1) Wheel arch, rear, outer half
• (2) C-pillar reinforcement
• (3) Shaped part, wheel arch, outer (not shown)
• (4) Shaped part, wheel arch, inner (not shown)

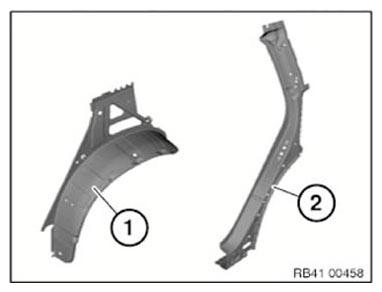

  Fig 1: Identifying Wheel Arch (Rear), Outer Half, C-Pillar Reinforcement

  Courtesy of BMW OF NORTH AMERICA, INC.

Removal of the outer wheel arch section with reinforcement

Additionally removing the side wall in the side sill area:

Extend severance cut (1) to lower edge of entrance.

Open weld joints in area (2) and remove entrance section.

1. (3) = Severance cut progression for replacement of side wall.

Fig 2: Identifying Lower Edge Of Entrance Severance Cut, Weld Joints Area

Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cut (1) in accordance with dimension and cut.

Dimension a = approx. 70 mm.

Open welded connections in areas (2).

Remove cavity acoustic baffle (3).

Fig 3: Identifying Cavity Acoustic Baffle Welded Connections Areas

Courtesy of BMW OF NORTH AMERICA, INC.

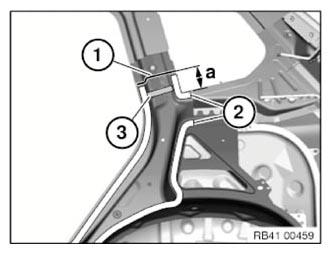

Remove cavity sealing (1).

Open welded connections in areas (2).

Remove reinforcement on C-pillar.

Fig 4: Identifying Cavity Sealing, Welded Connections Areas

Courtesy of BMW OF NORTH AMERICA, INC.

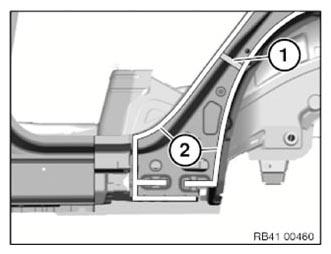

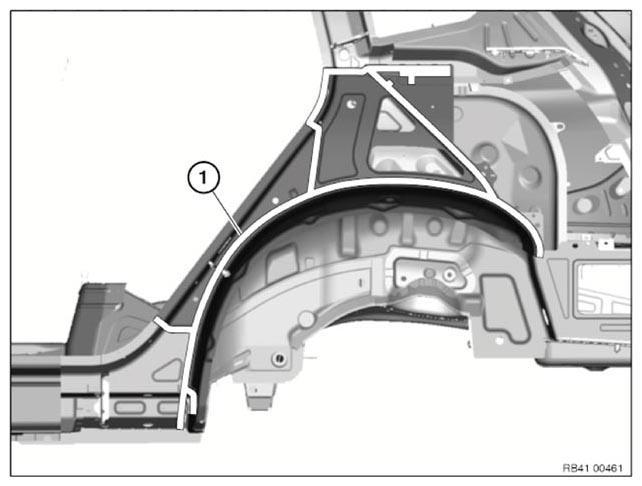

Open welded connections in area (1). Remove outer section of wheel arch.

Fig 5: Identifying Outer Section Of Wheel Arch Welded Connections Area

Courtesy of BMW OF NORTH AMERICA, INC.

New part preparation

Tear and separate the separating cut on the C-pillar reinforcement new part according to the vehicle.

Prepare REINFORCEMENT PLATE  at severance cut.

Adjust new parts in conjunction with side panel to fit.

Installation of the outer wheel arch section with reinforcement

Apply sealant to new CAVITY SEALINGS .

Install new parts and reinforcement plate and weld in place.

Installation of additional side wall section in side sill area:

Weld additional section in area (1).

Join additional section similarly to side wall using bonding/riveting technology in area (2).

Install 3 punch rivets N4 in area (2).

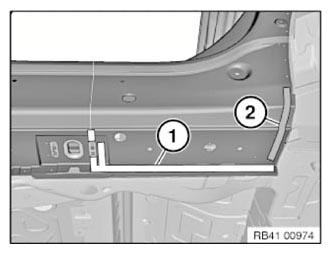

Fig 6: Identifying Bonding/Riveting And Punch Rivets N4 Area
