41 11 420 Replace Left Sills

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Procedure OBSERVE repair stage 3!

Read contents of BODY, GENERAL .

Use only approved SPOT-WELDING APPARATUS for repairs!

Following new body parts are required (see OVERVIEW OF CONSUMABLES ):

(1) Outer side frame

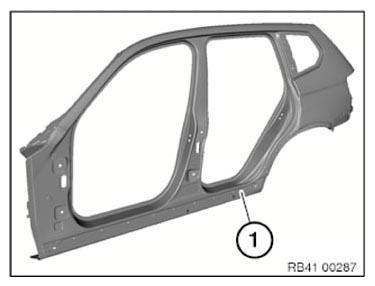

Fig 1: Identifying Outer Side Frame
Courtesy of BMW OF NORTH AMERICA, INC.

Removal

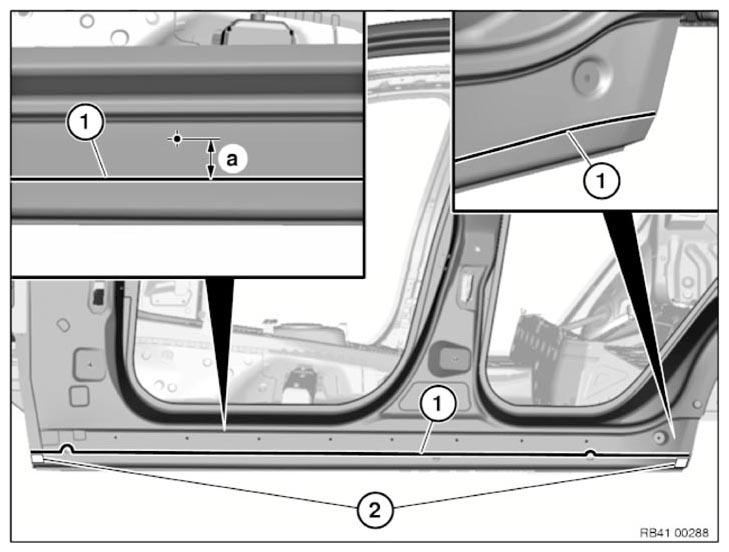

Fig 2: Identifying Outer Side Frame Severance Cutting Area

G09947632

Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cut (1) in accordance with dimension and cut.

IMPORTANT: Cut outer panel only.

Measurement a = approx. 40 mm from center point of 8 mm dia. hole.

Open welded connections in areas (2).

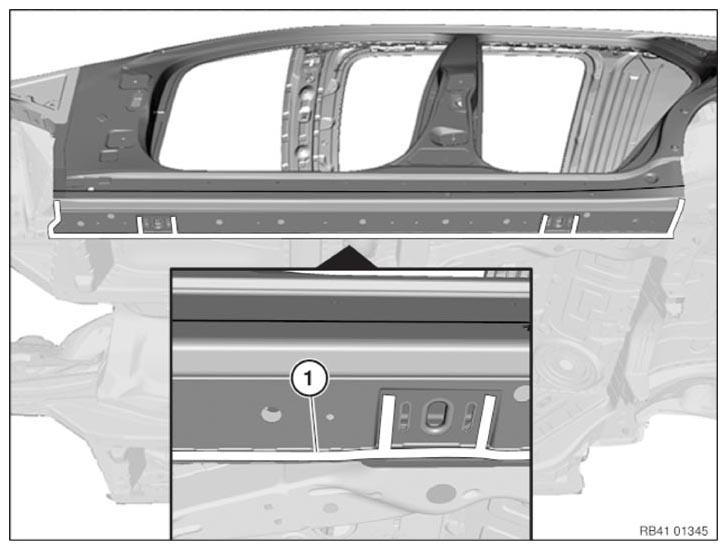

Fig 3: Identifying Outer Side Frame Welded Connections Areas

G09947633

Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in area (1).

Remove sill.

New part preparation

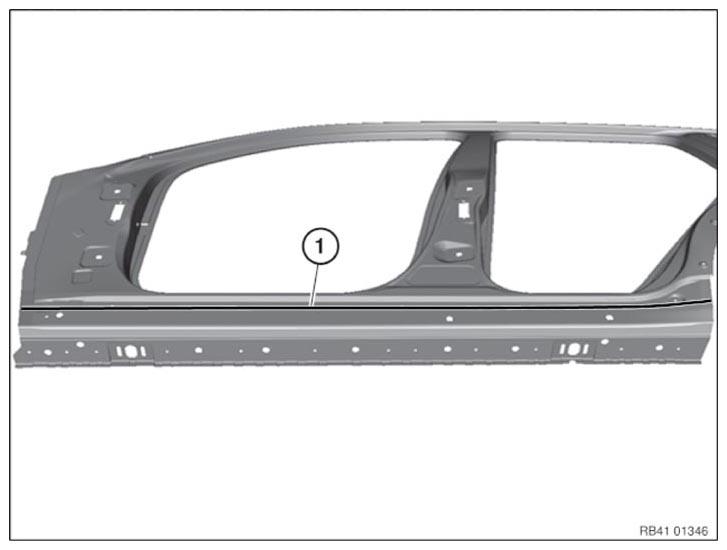

Fig 4: Identifying Sill Welded Connections Area

G09947634

Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cut (1) on the new part according to vehicle + 20 mm extra material and cut.

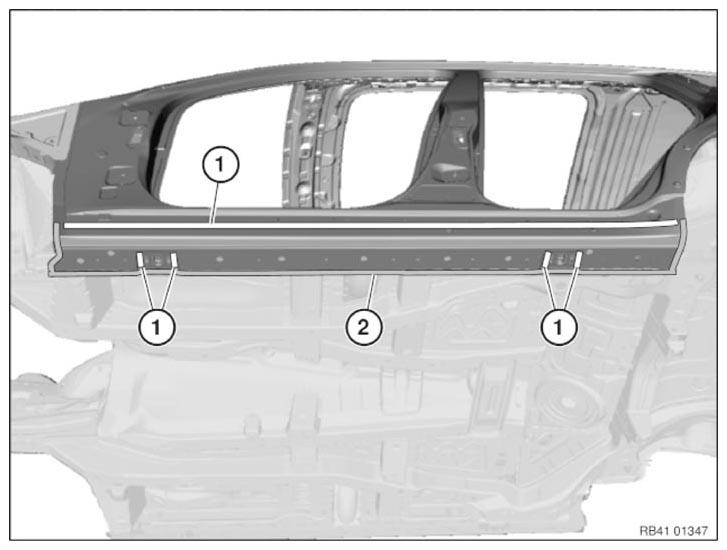

Fig 5: Identifying Outer Side Frame Plug-Weld Areas

G09947635

Courtesy of BMW OF NORTH AMERICA, INC.

Adjust new part to fit and secure.

Prepare new part for plug-weld in areas (1).

In area (2) prepare new part for spot-weld.

Remove new part and deburr holes.

Installation

Install new part and weld.
