41 11 311 Replace Entrance For Front Left Door
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
Observe procedure for REPAIR STAGE 3 .
Read contents of BODY, GENERAL .
Following new body parts are required (refer to OVERVIEW OF CONSUMABLES ):

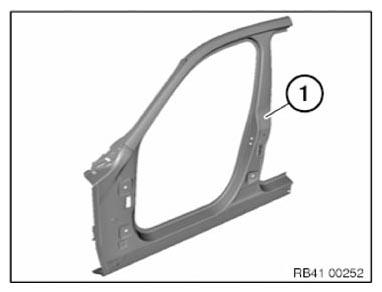

- (1) A-pillar with entrance

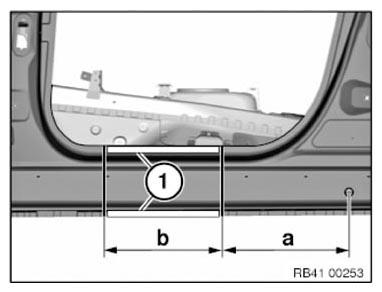

Mark severance cuts in accordance with specified dimensions and cut.
IMPORTANT:
Cut outer panel only for following severance cuts.
Dimension a = approximately 380 mm in front of Ø 20 mm hole.
Dimension b = approximately 360 mm before separating cut a.
Open welded connections in areas (1).
Installation note:
Mark new part in accordance with severance cuts on vehicle and cut.
Weld in REINFORCEMENT PLATES at severance cuts.
