41 11 201 Replacing The Carrier Support Before The Wheel Arch On The Left

Read contents of BODY, GENERAL .

Follow procedure for REPAIR STAGE 2 .

STRIP DOWN  vehicle.

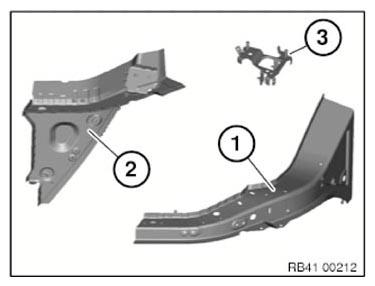

The following new body parts are required (refer to OVERVIEW OF CONSUMABLES ):

• (1) Outer wheel arch carrier support
• (2) Carrier support, inner wheel arch section
• (3) Holder DSC (right side of vehicle only)

Following CONSUMABLES  are required:

Fig 1: Identifying Outer And Inner Wheel Arch Carrier Support And Holder DSC

Courtesy of BMW OF NORTH AMERICA, INC.

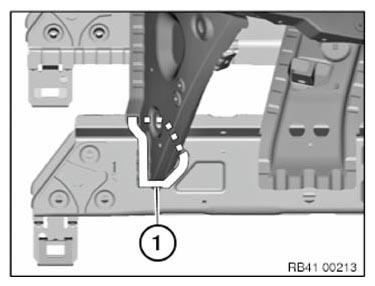

Removing carrier support

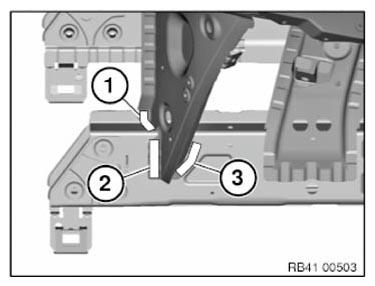

Open welded connections in area (1).

Fig 2: Identifying Engine Support Welded Connections Areas

Courtesy of BMW OF NORTH AMERICA, INC.

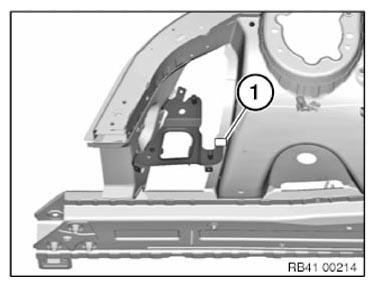

Right side of vehicle only:

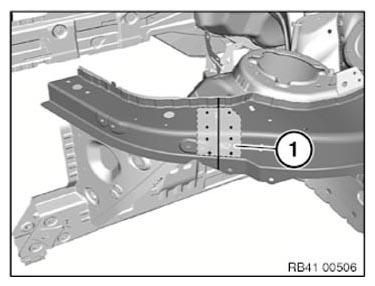

Open weld joint in area (1).

Fig 3: Identifying Carrier Support Weld Joint Area

Courtesy of BMW OF NORTH AMERICA, INC.

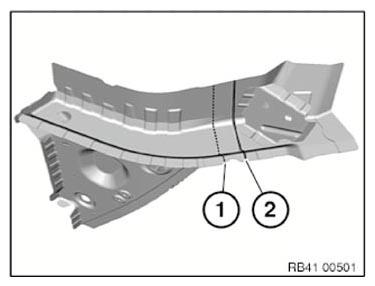

Fig 4: Identifying Carrier Support Severance Cutting Area

Courtesy of BMW OF NORTH AMERICA, INC.

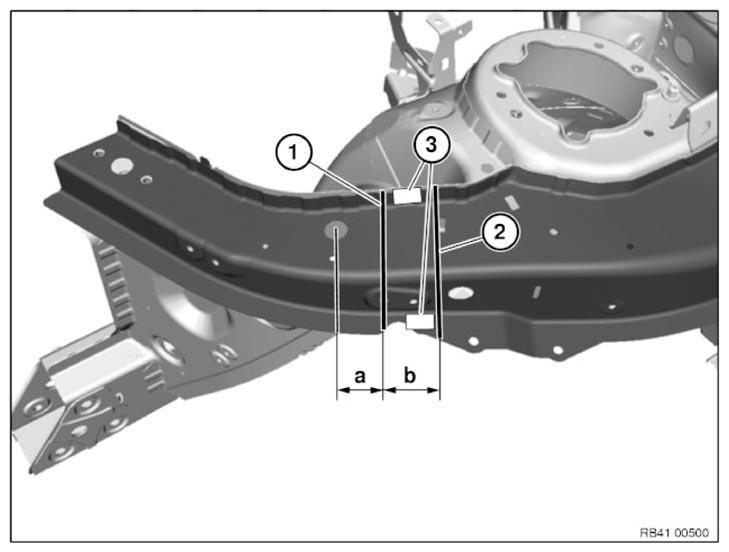

Mark severance cuts in accordance with specified dimensions and cut.

Only sever outer panel  at severance cut (2)!

Dimension a = approx. 40 mm from bore hole Ø 20 mm.

Dimension b = approx. 50 mm from severance cut (1).

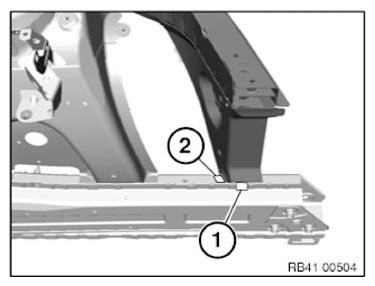

Open welded connections in areas (3).

Remove carrier support sections.

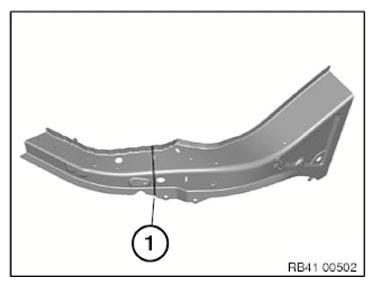

New part preparation

Mark new part in accordance with severance cut on vehicle (1) + 20 mm extra material and cut (2).

Fig 5: Identifying Carrier Support Severance Cutting Dimension

Courtesy of BMW OF NORTH AMERICA, INC.

Mark new part in accordance with severance cut on vehicle and cut (1).

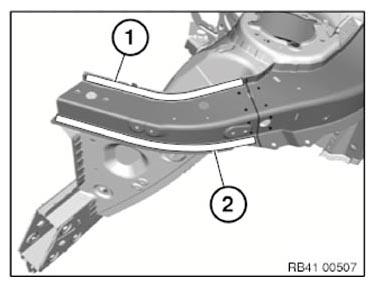

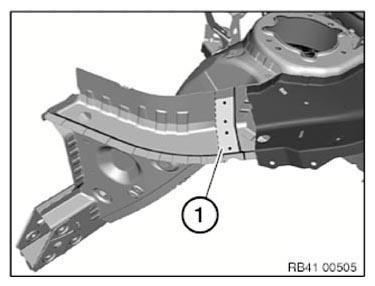

For the severance cut, create a REINFORCEMENT PLATE  (welded) from the trim of the new part.

Adjust new parts with add-on parts to fit and secure.

Fig 6: Identifying Reinforcement Plate Severance Cutting Part

Courtesy of BMW OF NORTH AMERICA, INC.

In areas (1) to (3), introduce Ø 6.8 mm bore holes for blind rivets N1.

Fig 7: Identifying Bore Holes For Blind Rivets (N1) Area

Courtesy of BMW OF NORTH AMERICA, INC.

In areas (1) and (2) introduce one Ø 6.8 mm bore hole for blind rivets N1.

Fig 8: Identifying Bore Hole Areas For Blind Rivets N1

Courtesy of BMW OF NORTH AMERICA, INC.

Prepare area of overlap (1) for plug-welding.

Fig 9: Identifying Plug-Welding Area

Courtesy of BMW OF NORTH AMERICA, INC.

Prepare area of reinforcement plate (1) for plug-welding.

Fig 10: Identifying Reinforcement Plate For Plug-Welding

Courtesy of BMW OF NORTH AMERICA, INC.

Right side of vehicle only:

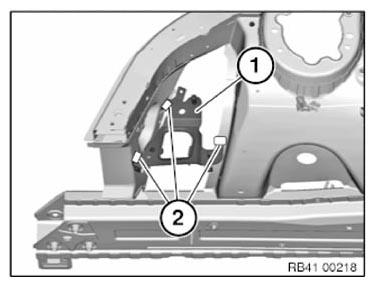

Fit DSC (1) holder.

In areas (2), introduce three bore holes Ø 4.2 mm for blind rivets N3.

Remove new parts and deburr bore holes.

Fig 11: Identifying DSC Holder And Blind Rivets (N3) Area

Courtesy of BMW OF NORTH AMERICA, INC.

Installing carrier support

Clean all bonding surfaces with cleaning agent R1.

Apply adhesive to bonding surfaces.

Install new parts with add-on parts and rivet with blind rivets.

Plug-weld in area of overlap (1).

At severance cut additionally set 4 metal active gas weld seams each with a length of 1 cm.

Fig 12: Identifying Plug-Welding Area

Courtesy of BMW OF NORTH AMERICA, INC.

Install and weld reinforcement plate in area of severance cut.

Clean bonding surfaces with cleaning agent R1.

Apply adhesive to bonding surfaces, and adjust and fix new part.

In areas (1) and (2), rivet each new part with 9 punch rivets N5.

In area of severance cut, weld new part and reinforcement plate.

Fig 13: Identifying Carrier Support Adhesive Rivet Areas

Courtesy of BMW OF NORTH AMERICA, INC.

After hardening of adhesive, in areas (2) and (3) install one EMC SCREW  in each case.

Fig 14: Identifying Bore Holes For Blind Rivets (N1) Area
