41 11 095 Replacing Left Engine Support In Front Of Wheel Arch

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Follow procedure for REPAIR STAGE 3 .

Read contents of BODY, GENERAL .

Use only APPROVED SPOT-WELDING APPARATUS for repairs.

Place vehicle on straightening bench.

Following new body parts are required (refer to OVERVIEW OF CONSUMABLES ):

(1) Engine support, front

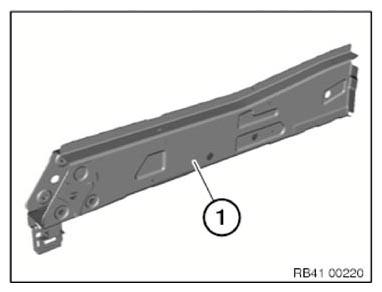

Fig 1: Identifying Front Left Engine Support
Courtesy of BMW OF NORTH AMERICA, INC.

Removing the engine support

Open welded connections in area (1).

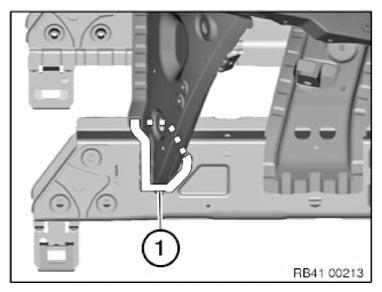

Fig 2: Identifying Engine Support Welded Connections Areas

G09947646

Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cut in accordance with Dimension a and cut.

Dimension a=85 mm before wheel arch edge.

Remove section of engine support.

NOTE: Shown without carrier support for purposes of clarity.

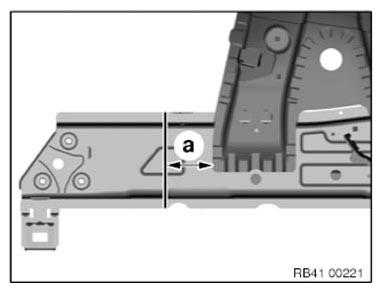

Fig 3: Identifying Wheel Arch Edge Dimension

G09947647

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation of new part:

Mark severance cut on new part in accordance with vehicle and cut.

Prepare REINFORCEMENT PLATE at severance cut.

Adjust new part to fit with alignment bracket or universal mount.

Installing engine support

Install new parts and reinforcement plates with alignment bracket or universal mount and weld.

MAG-weld new part in area (1).

Length of weld seam approx. 15 mm.

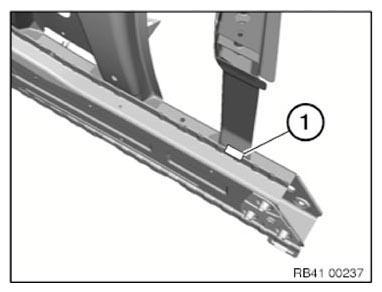

Fig 4: Identifying Engine Support MAG-Weld Part Area

G09947648

Courtesy of BMW OF NORTH AMERICA, INC.
