41 62 515 Removing/Installing/Replacing Left Hinge For Tailgate (Tailgate Removed)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
Read contents of BODY, GENERAL .

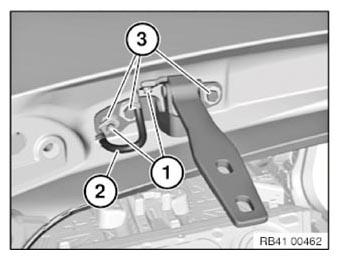

Loosen screw connections (1) and remove ground cable (2).
Release screws (3) and remove hinge.
Installation note:
Tightening torque 41 62 2AZ/41 62 3AZ .
ADJUST hinge together with tailgate.
