41 61 060 Removing And Installing/Replacing Hinge For Engine Compartment Lid

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Support engine compartment lid in fully opened position with suitable apparatus. Risk of injury.

Necessary preliminary tasks:

Remove left-hand GAS PRESSURE SPRING for engine compartment lid

REMOVE left microfilter housing cover

Shown on left side. Right side identical.

Remove filter cover (1) in direction of arrow.

Fig 1: Removing Filter Cover

G09947975

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

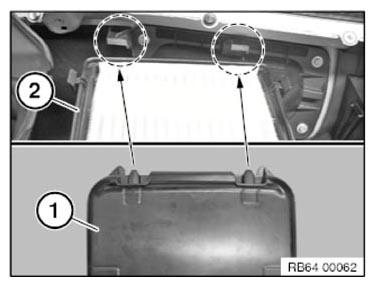

Ensure that latch mechanisms on the microfilter housing cover (1) are correctly seated under retaining lugs on microfilter housing (2).

Retaining lugs on microfilter housing (2) must be neither bent nor damaged.

Fig 2: Locating Retaining Lugs On Microfilter Housing

G09947976

Courtesy of BMW OF NORTH AMERICA, INC.

Position suitable cloths (1) without any play under engine compartment lid.

IMPORTANT: Make sure the engine compartment lid is supported!

Fig 3: Positioning Suitable Cloths Under Engine Compartment Lid

G09878884

Courtesy of BMW OF NORTH AMERICA, INC.

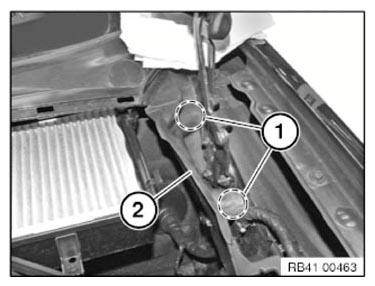

Release nuts (1) and remove partition wall (2).

Fig 4: Identifying Partition Wall Nuts

G09947978

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: After screws have been slackened no lateral forces must be exerted on the engine compartment lid!

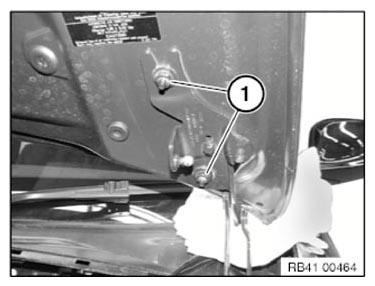

Release screws (1).

Tightening torque 41 61 1AZ .

Fig 5: Identifying Engine Compartment Lid Screws

G09947979

Courtesy of BMW OF NORTH AMERICA, INC.

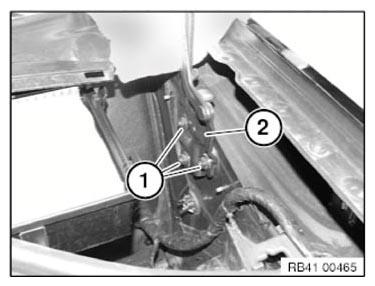

Release screws (1) and remove hinge (2).

Tightening torque 41 61 3AZ .

Installation note:

ADJUST hinge together with engine compartment lid.

Fig 6: Identifying Hinge Screws

G09947980

Courtesy of BMW OF NORTH AMERICA, INC.
