41 32 031 Replace The A-Pillar On The Outside Left In The Area Of The Windscreen

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Read contents of BODY, GENERAL .

Remove or cover those vehicle components in the repair area which are susceptible to heat or dust.

Use only approved SPOT-WELDING APPARATUS for repairs.

IMPORTANT: Operations on pyrotechnical devices may only be carried out by authorized experts.
Improper, unauthorized operations may result in serious dangers.
Unauthorized persons are strictly prohibited from performing any operations on this system.

WARNING: Read and comply with SAFETY INSTRUCTIONS for handling airbag modules and pyrotechnical belt tensioners.
Incorrect handling can activate airbag and cause injury.
A damaged head airbag must be replaced.
A damaged head airbag exhibits an impaired protective function and in extreme cases loses its protective function altogether.

Necessary preliminary tasks:

Disconnect BATTERY EARTH LEAD

Remove PANEL FOR ROOF PILLAR

Following new body parts are required (refer to OVERVIEW OF CONSUMABLES ):

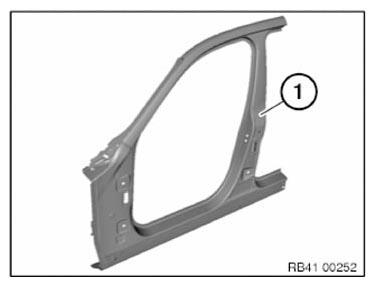

(1) A-pillar with entrance

Fig 1: Identifying A-Pillar With Entrance
Courtesy of BMW OF NORTH AMERICA, INC.

Removing the A-pillar in the area of the windscreen

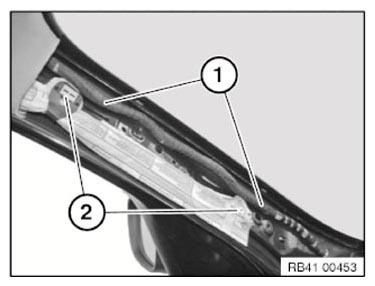

Unclip wiring harness in these areas (1).

Undo airbag at the attachment points (2).

IMPORTANT: For the exact procedure, see repair instructions for REMOVING AND INSTALLING HEAD AIRBAG !

IMPORTANT: Risk of damage!
Airbag must not be kinked or bent!

Fig 2: Identifying A-Pillar Airbag Wiring Harness Areas

G09947858

Courtesy of BMW OF NORTH AMERICA, INC.

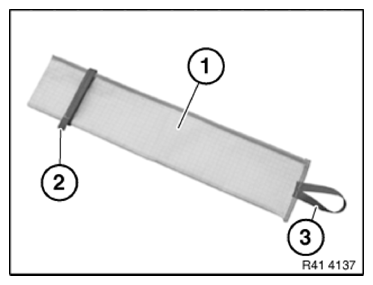

NOTE: Use protective sleeve (1) to protect the airbag.

Check protective sleeve for damage prior to use.

A damaged protective sleeve must not be used!

(2) Velcro fastener
(3) Loop

Fig 3: Identifying Protective Sleeve, Velcro Fastener, Loop
Courtesy of BMW OF NORTH AMERICA, INC.

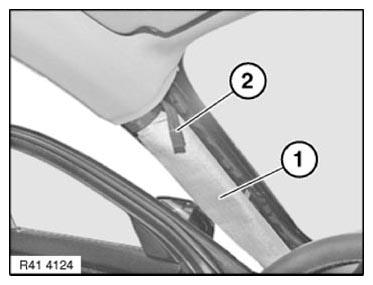

Push the protective sleeve (1) onto the airbag up to just below the roofliner so that the airbag is completely covered.

Fasten protective sleeve with Velcro fastener (2).

Secure protective sleeve with airbag against kinking.

Fig 4: Identifying Protective Sleeve With Velcro Fastener

G09947860

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 5: Identifying A Pillar Severance Cutting Dimension

G09947861

Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cuts in accordance with specified dimensions and cut.

IMPORTANT: Cut outer panel only for following severance cuts.

Dimensions a = approx. 150 mm from roof edge.

Dimension b = approx. 340 mm below severance cut a.

Open welded connections in areas (1).

New part preparation

Mark severance cuts on new parts in accordance with vehicle and cut.

Prepare REINFORCEMENT PLATES at severance cuts.

Installing the A-pillar in the area of the windscreen

Install and weld new parts and reinforcement plates.

After completing welding work:

Check airbag in area of protective sleeve for damage, REPLACE if necessary.
