63 13 080 Removing and installing/replacing left turn indicator insert

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Attention!

Read and comply with notes on protection against electrostatic damage (ESD PROTECTION) .

Necessary preliminary work:

Partially detach FRONT WHEEL ARCH COVER (front section).

Removal:

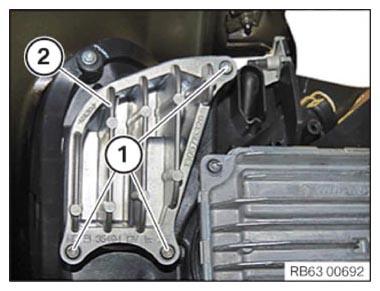

Release all screws (1).

Pull turn indicator insert (2) out of headlight.

Fig 1: Identifying Indicator Insert Out Of Headlight And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

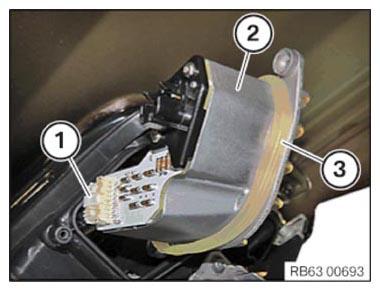

Unlock connector (1) on turn indicator insert (2) and disconnect.

Fig 2: Identifying Connector On Turn Indicator Insert

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Installation note:

Gasket (3) must not be damaged or missing.

Ensure gasket (3) is fitted correctly.

Connect connector (1) to turn indicator insert (2).

Fig 3: Identifying Connector On Turn Indicator Insert

Courtesy of BMW OF NORTH AMERICA, INC.

Insert turn indicator insert (2) into headlight.

Tighten all screws (1).

Tightening torque 63 11 1AZ .

Fig 4: Identifying Indicator Insert Out Of Headlight And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Teach in turn indicator insert with vehicle diagnosis.

Service functions
Body
Lights
Initialize the headlight driver module and teach in LEDs in headlight
