63 99 312 Replacing bulb(s) for left or right rear light (rear lid)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for handling light bulbs (EXTERIOR LIGHTS) .

Necessary preliminary work:

Remove SOCKET HOUSING FOR REAR LIGHT .

Pull bulb (1) out of bulb holder (3) in direction of arrow.

Turn bulb (2) in direction of arrow and remove from socket housing (3).

NOTE:

Bulb, backup light
Bulb, rear fog light

Installation note:

NOTE BULB TYPE .

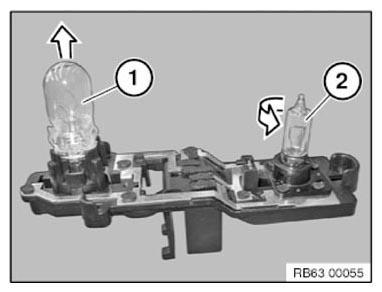

Fig 1: Pulling Bulb Out Of Bulb Holder

Courtesy of BMW OF NORTH AMERICA, INC.
