63 99 273 Replacing bulb for turn indicator, front left

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Follow instructions for handling light bulbs (EXTERIOR LIGHTS) .

NOTE: For purposes of clarity, illustrations shows headlight removed:

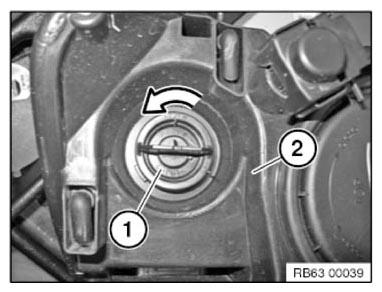

Turn bulb holder (1) approx. 30° anticlockwise and remove from headlight (2).

Fig 1: Turning Bulb Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Turn bulb (1) in direction of arrow out and remove from bulb holder (2) in upward direction.

Installation note:

Note BULB TYPE .

Fig 2: Removing Bulb From Bulb Holder

Courtesy of BMW OF NORTH AMERICA, INC.
