63 99 132 Replacing bulb for side lights, front left

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for handling light bulbs (exterior lights).

Unlock cover (1) and remove.

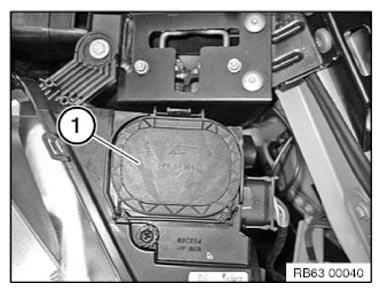

Fig 1: Identifying Side Lights Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Pull back bulb socket (1) out of headlight (2) in direction of arrow.

Installation note:

Make sure bulb holder (1) is exactly seated in headlight (2).

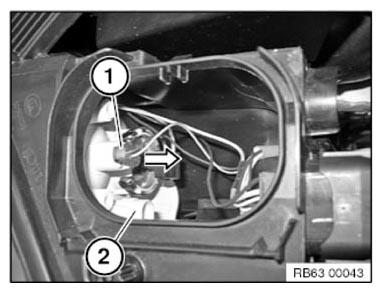

Fig 2: Pulling Back Bulb Socket Out Of Headlight

Courtesy of BMW OF NORTH AMERICA, INC.

Pull bulb for side light (1) out of bulb socket (2).

Installation note:

Note BULB TYPE .

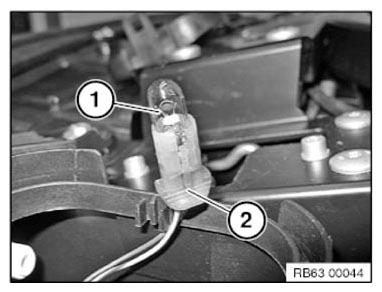

Fig 3: Identifying Side Light Bulb

Courtesy of BMW OF NORTH AMERICA, INC.
