63 11 570 Removing and installing/replacing left headlight driver module (LED headlight)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with INFORMATION ON PROTECTION AGAINST ELECTROSTATIC DISCHARGE !

NOTE: Removal and installation of headlight driver module is carried out from engine compartment.

Removal:

Release all screws (1).

Pull the headlight driver module (2) out of the headlight.

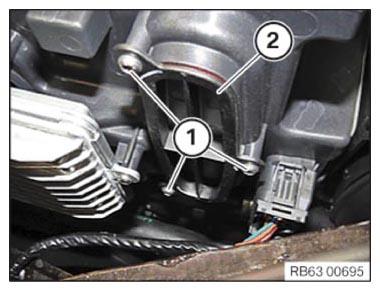

Fig 1: Identifying Headlight Driver Module With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Installation note:

The gasket (1) on headlight driver module (2) must not be damaged and must be installed free of grease.

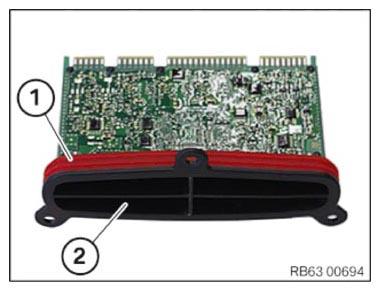

Fig 2: Identifying Gasket On Headlight Driver Module

Courtesy of BMW OF NORTH AMERICA, INC.

Insert the headlight driver module (2) into the headlight.

Tighten down screws (1).

Tightening torque 63 12 2AZ .

Fig 3: Identifying Headlight Driver Module With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Teach in headlight driver module (1) via vehicle diagnosis.

Service functions
Body
Lights
Initialize the headlight driver module and teach in LEDs in headlight
If applicable, carry out encoding
