63 14 120 Removing and installing or replacing rear reflector

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

64 1 020

Carefully release rear reflector (1) from latch mechanism (2) using special tool 64 1 020 as shown.

Remove rear reflector (1) from the bumper panel (3) in direction of arrow.

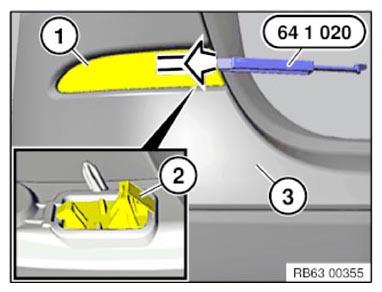

Fig 1: Removing Rear Reflector From Bumper Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Guide (1) and latch mechanisms (2) must be neither damaged or missing.

Make sure rear reflector (3) is correctly seated.

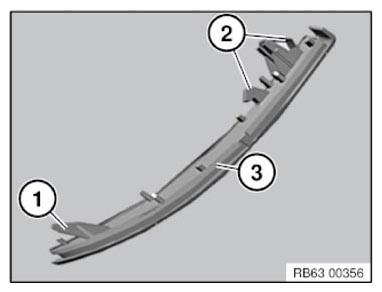

Fig 2: Identifying Rear Reflector, Guide And Latch Mechanisms

Courtesy of BMW OF NORTH AMERICA, INC.
