52 26 414 Replacing backrest cover for rear seat, center

Necessary preliminary tasks:

• Remove LEFT BACKREST FOR REAR SEAT
• Remove armrest

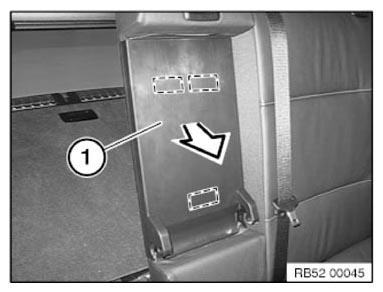

Remove center rear seat backrest from support of left-hand backrest in direction of arrow.

Fig 1: Removing Center Rear Seat Backrest From Support Of Left-Hand Backrest

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Plastic bush (1) may slide when removing the center backrest.

Make sure plastic bush (1) is fitted correctly in the backrest frame.

The plastic bush (1) must be retained in the backrest frame with a lug.

Plastic bush (1) is clipped in from inside outwards.

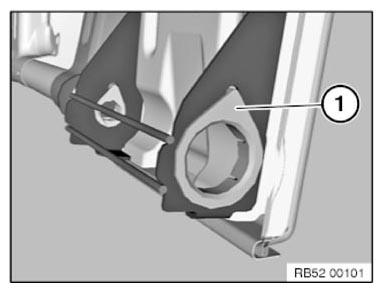

Fig 2: Identifying Backrest Frame Plastic Bush

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Plastic bush (1) may slide when removing the center backrest.

Make sure plastic bush (1) is fitted correctly in the backrest frame.

The plastic bush (1) must be retained in the backrest frame with a lug.

Plastic bush (1) is clipped from outside inward.

Fig 3: Identifying Center Backrest Plastic Bush

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip trim cover for lock with a plastic wedge.

Move trim cover for lock a little towards the middle.

Detach trim cover for lock by pulling towards rear.

Fig 4: Removing Trim Cover Using Plastic Wedge

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Retaining lugs on the trim cover for the lock must not be damaged.

Replace defective trim cover for lock.

Fig 5: Identifying Cover Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.

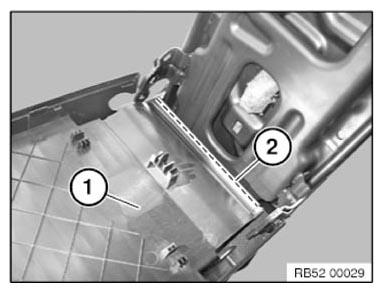

Carefully unclip strip (1) for channel cover along the marking on left and right.

Fig 6: Removing Channel Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Latch mechanisms must not be damaged

Replace defective strip for channel cover.

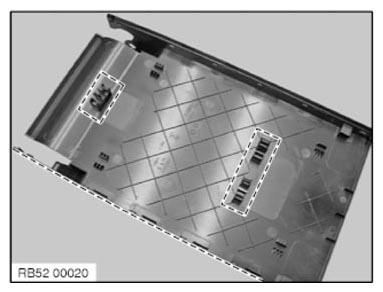

Fig 7: Identifying Defective Strip For Channel Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Use plastic wedge to unclip front center armrest trim cover (1).

Fig 8: Removing Front Center Armrest Trim Cover

Courtesy of BMW OF NORTH AMERICA, INC.

None of the retaining lugs on trim must be damaged.

Replace defective center armrest cover.

Fig 9: Identifying Defective Center Armrest Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

In marked area (1), fit center armrest trim cover (1) in welt of lower seat cover.

Fig 10: Identifying Center Armrest Trim Cover Marked Area

Courtesy of BMW OF NORTH AMERICA, INC.

Insert plastic wedge from outside between trim (1) and lock.

Carefully lever outer side of trim (1) with plastic wedge upwards out of catch.

Lever inner side of trim (1) with plastic wedge out of catch.

Remove trim upwards.

Fig 11: Locating Outer Side Of Trim With Plastic Wedge

Courtesy of BMW OF NORTH AMERICA, INC.

Press backrest cover with padding next to guide downwards to expose retaining lugs.

Unlock retaining lugs on left and right with screwdriver and lift up to remove guide.

Guide sleeves with  locks have two retaining lugs.

Guide sleeves with no  latches have one retaining lug.

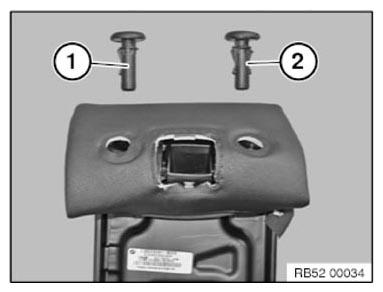

Fig 12: Identifying Short Guide Sleeves

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace guide sleeves and install as follows:

1. Short guide sleeves center right
2. Short guide sleeve with center left lock

Lever out welt in marked area.

Fig 13: Identifying Welt Marked Area

Courtesy of BMW OF NORTH AMERICA, INC.

Detach trim wire from claw studs.

Fig 14: Identifying Trim Wire From Claw Studs

Courtesy of BMW OF NORTH AMERICA, INC.

Detach cover from plastic tabs.

Fig 15: Locating Cover Plastic Tabs

Courtesy of BMW OF NORTH AMERICA, INC.

Pull cover forward to remove from operating unit.

Detach cover from plastic tabs.

Fig 16: Identifying Operating Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out welt in marked area.

Remove lower seat cover.

Fig 17: Identifying Welt Marked Area

Courtesy of BMW OF NORTH AMERICA, INC.
