52 26 020 Removing and installing/replacing both backrests

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove BACKREST SIDE SECTION
Remove REAR SEAT

Release screw (1).

Tightening torque 72 11 21AZ .

Installation note:

End fitting is coded against incorrect installation.

Replace screw (1).

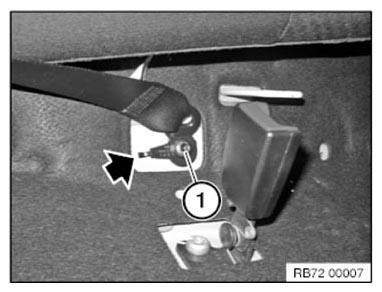

Fig 1: Locating Rear Center Seat Belt Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out pin and remove expanding rivet (1) on left and right.

Release left and right screws (2).

Tightening torque 52 26 01AZ .

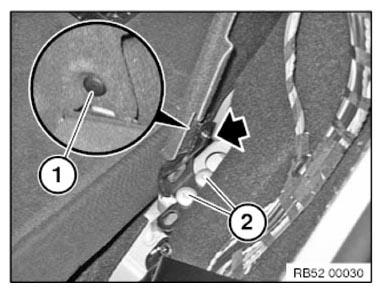

Fig 2: Locating Expanding Rivet And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Tilt backrest slightly forwards.
Pull backrest forwards and outwards out of center mount

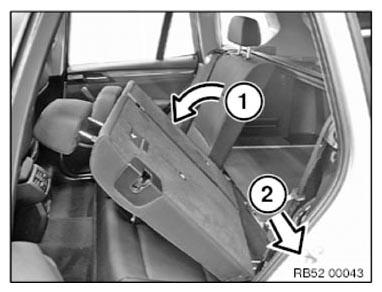

Fig 3: Tilting Backrest
Courtesy of BMW OF NORTH AMERICA, INC.

Tilt backrest slightly forwards.
Pull backrest forwards and outwards out of center mount

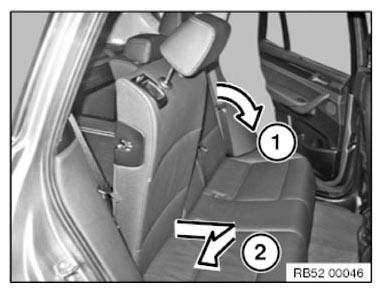

Fig 4: Pulling Backrest Outwards Out Of Center Mount
Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure plastic bush (1) is fitted correctly.

Lock plastic bush (1) with lug in center mount.

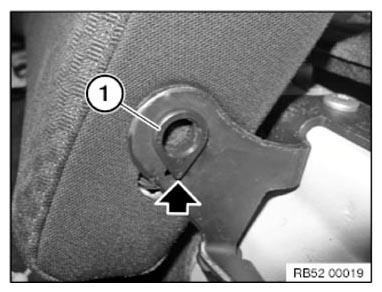

Fig 5: Locating Plastic Bush

Courtesy of BMW OF NORTH AMERICA, INC.
