52 16 055 Replacing an air cushion for backrest width adjustment left or right

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove the REAR PANEL FROM THE FRONT SEAT

Detach backrest cover (1) from backrest frame.

Fig 1: Detaching Backrest Cover

G09851345

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Removal operation is shown on left side, right analogous to that.
The air cushion must be deflated completely.

Disconnect spring (1).

Lift out clips with plastic wedge.

Feed out air cushion (2) between spring wire and backrest frame.

Installation note:

Insert the air cushion without kinks.

Check air cushion for damage.

Fig 2: Checking Air Cushion For Damage

G09851474

Courtesy of BMW OF NORTH AMERICA, INC.

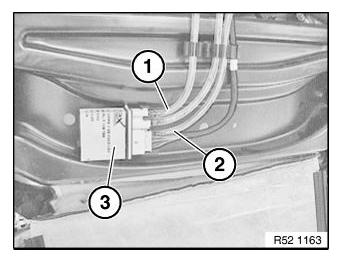

Unlock quick connectors and detach air hoses (1 and 2) from valve body (3).

If necessary, remove VALVE HOUSING .

Installation note:

Connections are coded against incorrect assembly.

Air hoses must not be kinked.

Fig 3: Identifying Air Hoses And Valve Body

G09851475

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Carry out FUNCTION CHECK
