52 16 048 Remove or install thigh support at the front seat (sport/electric) on the left or right

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Unlock and move thigh support (1) as far forward as possible.

Lever out the welt (3) from the seat cover (2) from the thigh support (1).

Fig 1: Removing Thigh Support

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 2: Identifying Thigh Support Actuation And Centering

Courtesy of BMW OF NORTH AMERICA, INC.

Do not completely extend the thigh support to the end stop.

Keep Actuation (1) pressed to unlock the centering (2).

Carefully raise the end stop (3) for the thigh support with a screwdriver and pull the thigh support toward the front out of the guide rails at the same time.

View of thigh support mechanism:

End stop for thigh support
Locking mechanism for the thigh support

Fig 3: Identifying Thigh Support And Locking Mechanism
Courtesy of BMW OF NORTH AMERICA, INC.

View seat mechanism:
Guide rail on seat with depth retainer
Guide rail on seat with end stop

Fig 4: Identifying Seat Frame Mechanism And Guide Rail
Courtesy of BMW OF NORTH AMERICA, INC.

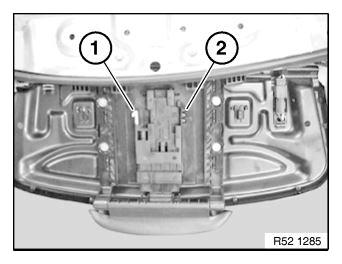

Unfasten plug connection (1) and disconnect.

NOTE: Check guide rails (2) and adjusting mechanism (3) for damage.

Fig 5: Identifying Front Seat Guide Rails, Adjusting Mechanism And Plug Connection
