52 13 021 Removing and installing/replacing flexmat on left or right front seat

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove padding for front seat

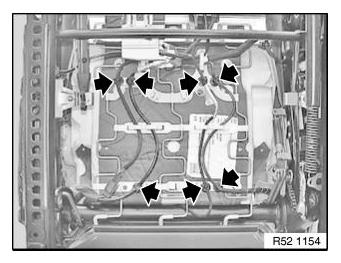

Cut all cable ties and disengage wiring harnesses from flexmat.

Fig 1: Locating Cable Ties

Courtesy of BMW OF NORTH AMERICA, INC.

Disengage flexmat (1) at front.

Fig 2: Disengaging Flexmat (Front)

Courtesy of BMW OF NORTH AMERICA, INC.

Swing flexmat (1) down and disengage from seat frame.

Fig 3: Disengaging Flexmat From Seat Frame

Courtesy of BMW OF NORTH AMERICA, INC.
