54 10 300 Removing and refitting water channel

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FRONT SECTION OF PANORAMA GLASS ROOF
Move mechanism for front glass slide/tilt sunroof cover to vent position
Floating headlining closed

Drill out rivet (1).

Pull gate (2) for floating headlining towards rear and lift out.

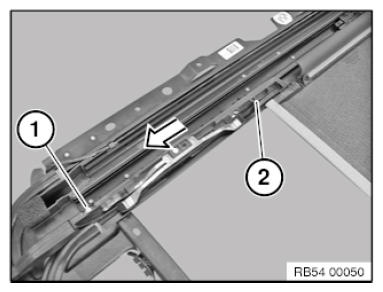

Fig 1: Pulling Gate For Floating Headlining Towards Rear

Courtesy of BMW OF NORTH AMERICA, INC.

Lift out pin out of expanding rivet and remove expanding rivet.

Slide back water channel (2) and out of guide.

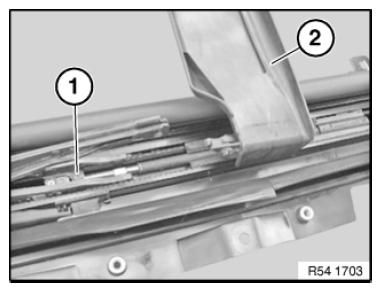

Fig 2: Identifying Water Channel Out Of Guide

Courtesy of BMW OF NORTH AMERICA, INC.
