54 13 060 Removing and installing/replacing floating headlining for glass slide/tilt sunroof

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove GLASS SLIDE/TILT SUNROOF COVER

Move the floating headlining with the slider (1) to the edge at the aperture of the guide rail.

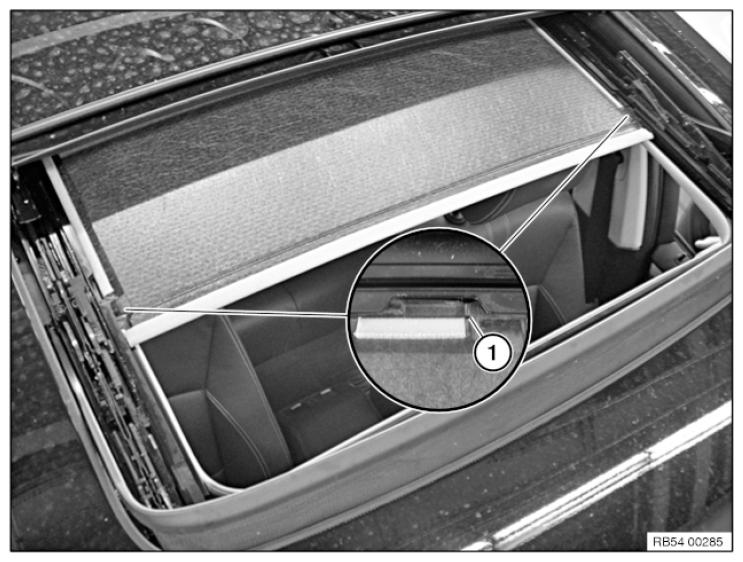

Fig 1: Moving Floating Headlining With Slider

Courtesy of BMW OF NORTH AMERICA, INC.

Front floating headlining...

... push up at a distance x = 100_mm from the front edge and simultaneously...
... unlock the floating headlining with a quick knock with the palm of your hand on the front edge.

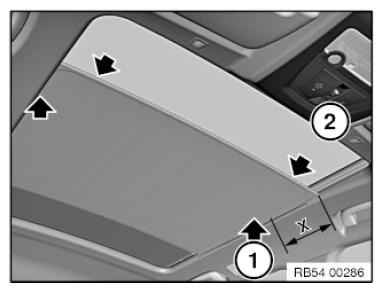

Fig 2: Pushing Up And Unlocking Floating Headlining
Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Floating headlining is completely unlocked when the tabs of the floating headlining are positioned freely in the slider and the aperture of the guide rail. (see magnifying glass)

Lift the front edge of the floating headlining and remove toward the front. (Direction of arrow)

Installation note:

Insert the floating headlining with barcode to the rear.

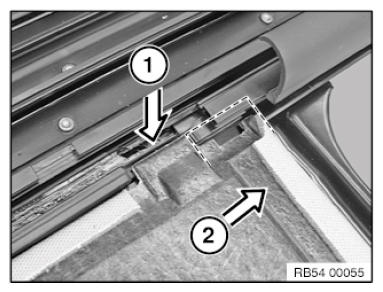

Fig 3: Removing Front Edge Of Floating Headlining

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Fit sliding sunshade in mechanism.
Push floating headlining forward to the stop (end position) in the mechanism.

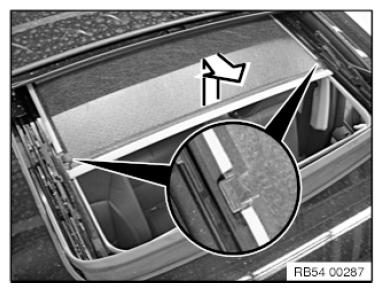

Fig 4: Fitting Sliding Sunshade In Mechanism
Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure the front tabs of the floating headlining is seated correctly in the mechanism.

Tabs must clip in correctly behind the lock (see aperture).

If necessary, check locking of tabs in the mechanism by moving the floating headlining back and forth.

Check the function with a button.

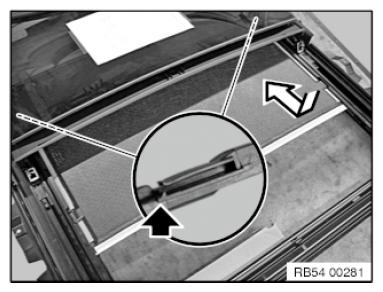

Fig 5: Moving Floating Headlining Back And Forth

Courtesy of BMW OF NORTH AMERICA, INC.
