17 22... Install/remove/replace gearbox oil lines for the automatic transmission (N55)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Risk of scalding!
Only perform this repair work after engine has cooled down.

Necessary preliminary tasks:

Remove intake port. See 13..... REMOVING INTAKE PORT (N55) .
Remove front UNDERBODY PROTECTION .
Remove LEFT UNDERBODY PANELLING

Recycling

Transmission oil emerges when fluid lines are detached from transmission oil cooler.

Catch and dispose of escaping transmission oil in a suitable container.

Observe country-specific waste disposal regulations.

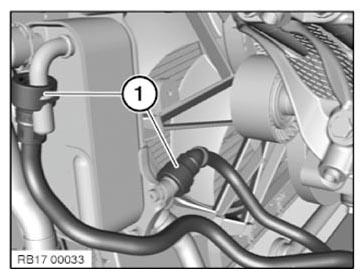

Unlock transmission fluid lines (1) and detach from gearbox oil cooler.

Fig 1: Identifying Transmission Fluid Lines

Courtesy of BMW OF NORTH AMERICA, INC.

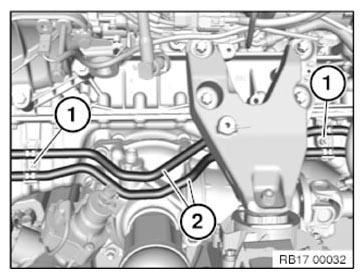

Release screws (1).

Undo the gearbox oil lines (2) from the holders.

Fig 2: Identifying Gearbox Oil Lines & Screws

Courtesy of BMW OF NORTH AMERICA, INC.

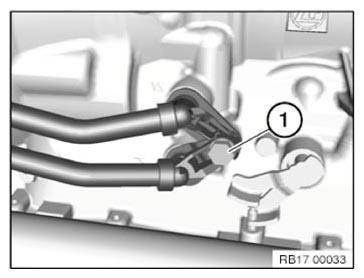

Release screw (1).

Pull off and remove gearbox oil lines from the gearbox.

Replace gaskets.

Fig 3: Identifying Gearbox Oil Lines Screw

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Check the software version if a plastic gearbox oil line has been fitted or must be replaced!

To prevent thermal damage of the components, it is only permitted to fit plastic gearbox oil lines in conjunction with integration level F025-11-03-500 or higher (PU measure 1.04.2011).

Check integration level version and upgrade, if applicable.

NOTE: Assemble engine.
Check OIL LEVEL in automatic transmission. If necessary, top up automatic transmission oil.
