17 22 010 Removing and installing/replacing transmission oil cooler for automatic transmission (N52T)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Risk of scalding!
Only perform this repair work after engine has cooled down.

Necessary preliminary work:

Drain COOLANT .

Recycling

Catch and dispose of drained coolant in a suitable collecting vessel.

Transmission oil emerges when fluid lines are detached from transmission oil cooler.

Catch and dispose of escaping transmission oil in a suitable collecting vessel.

Observe country-specific waste disposal regulations.

Release and disconnect coolant hoses (1).

Unlock transmission oil lines (2) and detach.

Release screw (3).

Tightening torque: 17 10 6AZ .

Detach transmission oil cooler (4) from fan cowl and remove.

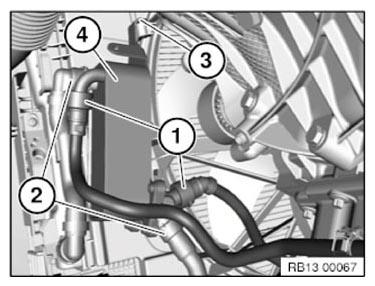

Fig 1: Identifying Transmission Oil Lines, Coolant Hoses And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Assemble engine.
Check OIL LEVEL in automatic transmission. If necessary, top up automatic transmission oil.
