51 47 072 Removing and installing/replacing finishing strip on rear left or right entrance (outer)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 325

NOTE: Cover trim (1) is bonded with adhesive tape lengthwise.

Press off cover trim (1) with special tool 00 9 325 and remove.

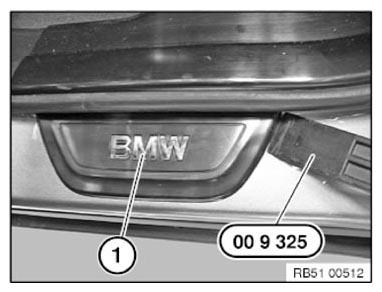

Fig 1: Pressing Cover Trim Using Special Tool (00 9 325)

Courtesy of BMW OF NORTH AMERICA, INC.
