64 11 869 Replacing servodrive for blending flap
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary work:
- Remove SUPPORT FOR DASHBOARD

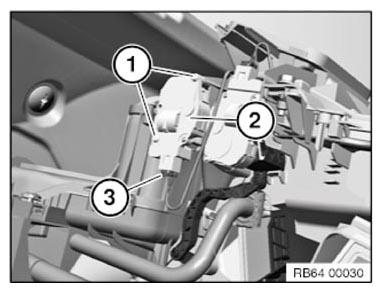

Release screws (1).
Detach actuator drive for stratification flap (2) from heating/air conditioning unit (4).
Unlock plug connection (3) and disconnect.
Servomotors must be readdressed in the event of replacement!
Addressing can only be carried out with the BMW diagnosis system.
Service functions:
- Body
- Heating and air conditioning function
- Flap motors
- Readdress flap motors
