64 11 866 Removing and installing/replacing servodrive for blending flap (left)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove SUPPORT FOR DASHBOARD

Release screws (1).

Remove actuator drive (2).

Unlock plug connection (3) and disconnect.

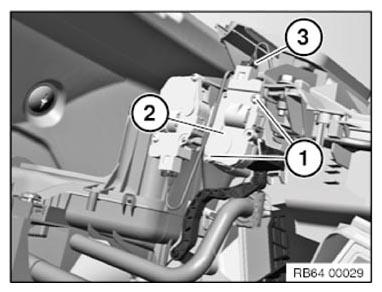

Fig 1: Identifying Actuator Drive Plug Connection, Screws

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Servomotors must be readdressed in the event of replacement!
Addressing can only be carried out with the BMW diagnosis system.
Service functions:

Body
Heating and air conditioning function
Flap motors
Readdress flap motors
