64 11 829 Replacing actuator drive of ventilation flaps
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary work:
- Remove SUPPORT FOR DASHBOARD

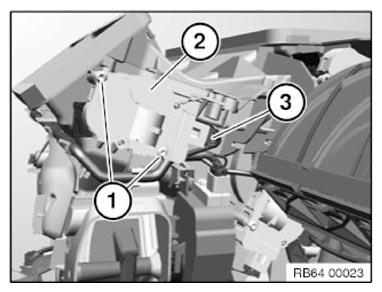

Release screws (1).
Release plug connection (3) and disconnect.
Detach servodrive for ventilation flaps (2) in direction of arrow from heater/air conditioner.
Replacement:
Servomotors must be readdressed in the event of replacement!
Addressing can only be carried out with the BMW diagnosis system.
Service functions:
- Body
- Heating and air conditioning function
- Flap motors
- Readdress flap motors
