64 11 806 Removing and installing/replacing actuator drive for fresh/recirculated air flap
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary work:

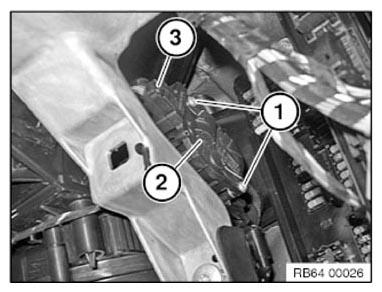

Release screws (1).
Detach actuator drive for fresh air/recirculating air flap (2) from heating/air conditioning unit.
Unlock plug connection (3) and disconnect.
IMPORTANT:
Servomotors must be readdressed in the event of replacement!
Addressing can only be carried out with the BMW diagnosis system.
Service functions:
- Body
- Heating and air conditioning function
- Flap motors
- Readdress flap motors
