64 11 225 Replacing controller for heating and air conditioning system blower

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove TRIM FOR INSTRUMENT PANEL, BOTTOM LEFT

Removal:

Release screws (1).

Unlock and disconnect connector (2).

Remove controller (3) downwards.

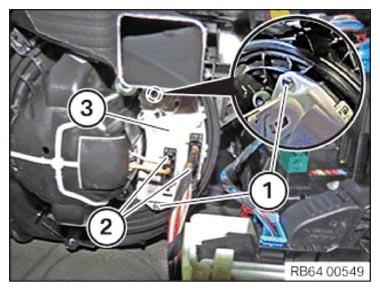

Fig 1: Identifying Controller, Connector And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Position controller (3) correctly.

Tighten down the screws (1).

Connect connector (2).

Fig 2: Identifying Controller, Connector And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

Install BOTTOM RIGHT INSTRUMENT PANEL TRIM
